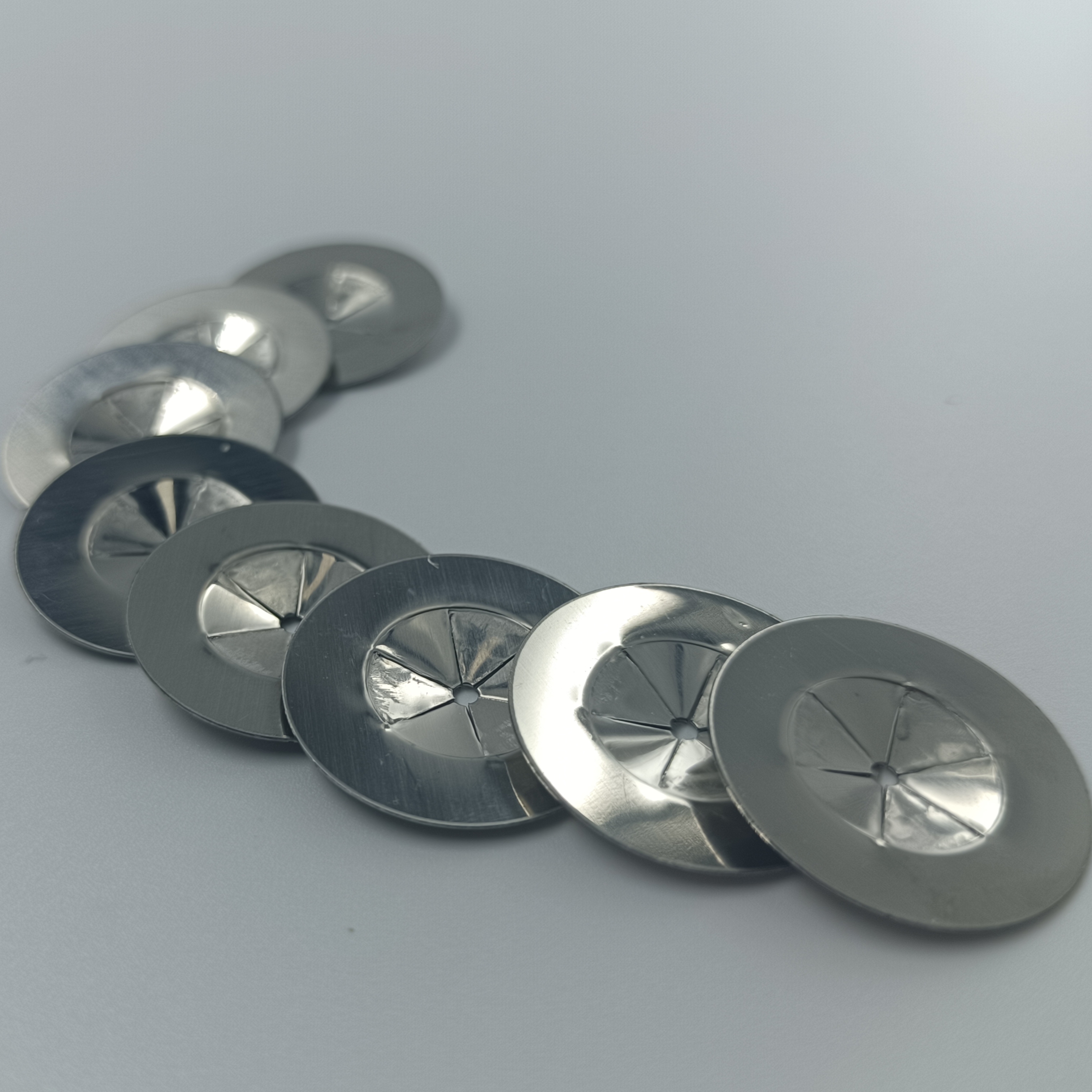

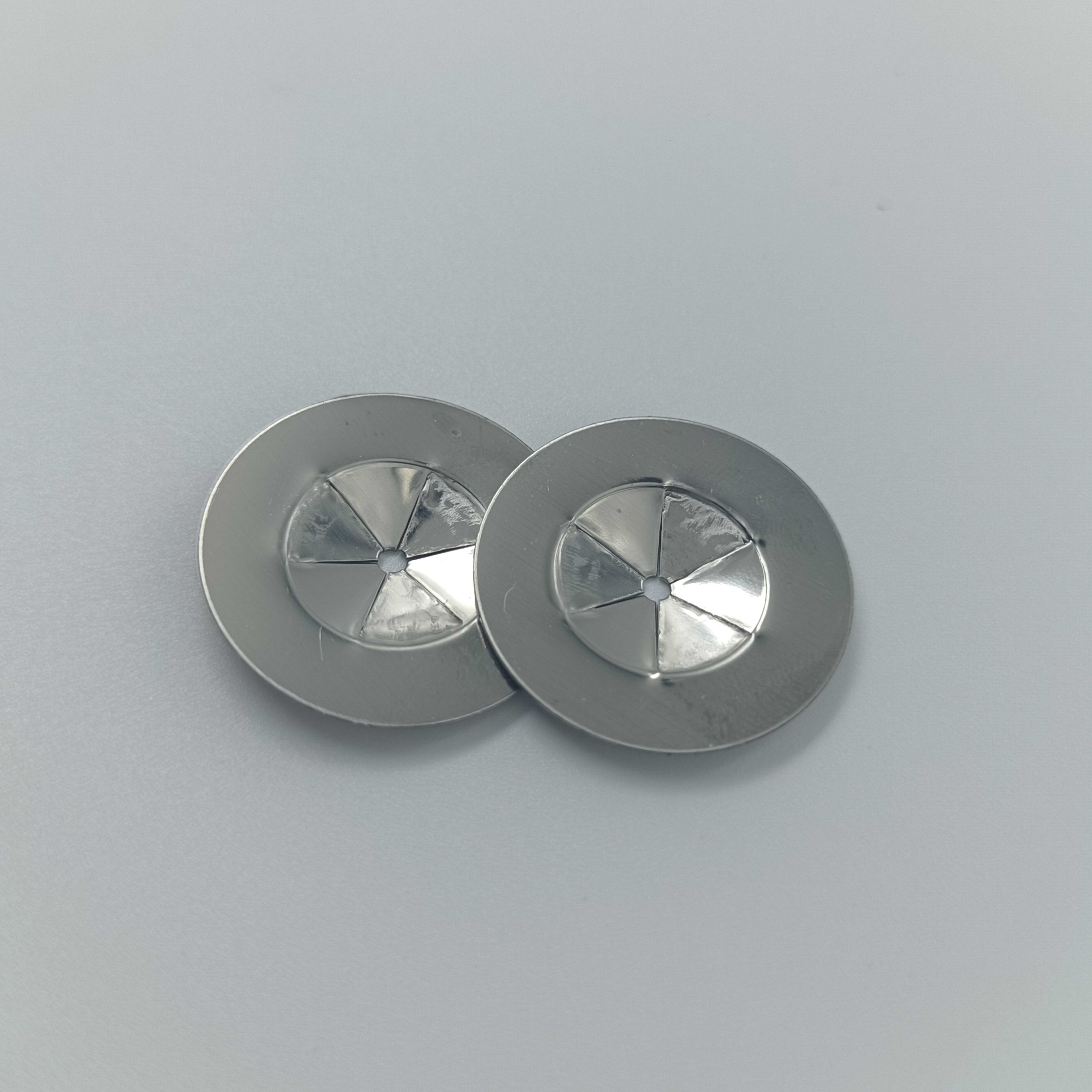

Insulation self - locking washers are specialized fasteners that combine the functions of insulation and self - locking mechanisms. These washers play a crucial role in various applications, especially in electrical and mechanical systems where reliability, safety, and stability are of utmost importance.

1. Preventing Loosening

One of the primary functions of insulation self - locking washers is to prevent fasteners from loosening over time. In mechanical systems, vibrations, temperature changes, and dynamic loads can cause nuts and bolts to gradually loosen. This can lead to serious problems, such as component misalignment, structural instability, and even equipment failure.

Insulation self - locking washers address this issue through their unique design. They typically have a serrated or toothed surface that bites into the mating surfaces of the nut and the workpiece. When the nut is tightened, these teeth create a frictional force that resists the loosening torque. For example, in automotive engines, where there are high - frequency vibrations during operation, insulation self - locking washers are used to secure bolts and nuts in critical components like the cylinder head. This ensures that the engine's internal components remain properly fastened, preventing leaks of oil, coolant, and combustion gases.

In industrial machinery, such as large - scale manufacturing equipment and power - generation turbines, the use of insulation self - locking washers is also essential. These machines often operate under extreme conditions, including high - speed rotations and heavy loads. The self - locking feature of the washers helps to maintain the integrity of the fasteners, reducing the need for frequent maintenance and minimizing the risk of unexpected breakdowns.

2. Electrical Insulation

As the name implies, insulation self - locking washers provide electrical insulation. In electrical systems, it is crucial to prevent electrical current from flowing where it is not intended. These washers are made from insulating materials, such as high - performance plastics or rubber - like compounds, which have excellent dielectric properties.

For instance, in electrical panels and switchgear, insulation self - locking washers are used to isolate electrical components from the metal enclosures. This prevents electrical short - circuits and ensures the safe operation of the equipment. In power distribution systems, where high - voltage conductors are connected to various components, the use of insulation washers helps to maintain the electrical insulation between different parts of the system. This is especially important in outdoor applications, where the electrical equipment is exposed to moisture, dust, and other environmental factors that could potentially compromise the insulation.

In addition, in electronic devices, insulation self - locking washers are used to mount components such as transistors, capacitors, and integrated circuits. They not only provide electrical insulation but also help to secure the components in place, protecting them from mechanical stress and vibration.

3. Distributing Pressure

Insulation self - locking washers are also effective in distributing the pressure exerted by the fastener evenly across the surface of the workpiece. When a nut or bolt is tightened, the load is concentrated at the point of contact between the fastener and the workpiece. This can lead to stress concentrations, which may cause the workpiece to deform or even crack, especially in brittle materials.

The large surface area of the insulation self - locking washer helps to spread the load over a wider area. This reduces the stress on the workpiece and improves the overall stability of the joint. For example, in the construction of buildings, when fastening steel beams and columns together, insulation self - locking washers are used to ensure that the load is evenly distributed. This helps to prevent local damage to the structural members and enhances the structural integrity of the building.

In the aerospace industry, where weight - saving is a critical factor, the use of insulation self - locking washers allows for the use of thinner and lighter materials without sacrificing strength. By distributing the pressure effectively, these washers enable the design of more efficient and reliable structures.

4. Resisting Vibration

Vibration is a common phenomenon in many mechanical and electrical systems. It can cause fasteners to loosen, components to malfunction, and even lead to premature failure of the equipment. Insulation self - locking washers are designed to resist vibration effectively.

The self - locking mechanism of the washers, combined with their elastic properties, helps to dampen the effects of vibration. The serrated or toothed surface of the washer creates a mechanical interlock with the nut and the workpiece, which resists the relative movement caused by vibration. In addition, the flexibility of the insulating material allows the washer to absorb some of the vibrational energy.

For example, in the suspension systems of vehicles, where there is constant vibration due to road irregularities, insulation self - locking washers are used to secure the components. This ensures that the suspension system remains properly adjusted and functions optimally. In industrial machinery, such as pumps, compressors, and generators, the use of insulation self - locking washers helps to reduce the impact of vibration on the equipment, extending its service life.

5. Protecting Against Corrosion

In some applications, insulation self - locking washers can also play a role in protecting against corrosion. The insulating material of the washer acts as a barrier between the metal fastener and the workpiece, preventing the formation of galvanic cells. Galvanic corrosion occurs when two different metals are in contact in the presence of an electrolyte, such as moisture.

For example, in marine applications, where saltwater is a common corrosive agent, insulation self - locking washers are used to prevent corrosion between different metal components. By isolating the metals, these washers help to extend the lifespan of the equipment and reduce maintenance costs. In outdoor electrical installations, the insulation provided by the washers also helps to prevent the corrosion of fasteners due to exposure to rain, humidity, and other environmental factors.

6. Accommodating Thermal Expansion and Contraction

Many materials expand and contract with changes in temperature. In mechanical and electrical systems, this thermal expansion and contraction can cause problems if not properly accounted for. Insulation self - locking washers can accommodate these dimensional changes to some extent.

The elastic properties of the insulating material allow the washer to deform slightly as the temperature changes. This helps to maintain the integrity of the joint by preventing excessive stress on the fastener and the workpiece. For example, in power plants, where high - temperature steam is used to generate electricity, the components are subject to significant temperature variations. Insulation self - locking washers are used to fasten the pipes and fittings, ensuring that the joints remain secure even during thermal cycling.

 insulation self - locking washers have a wide range of functions that make them indispensable in many applications. Their ability to prevent loosening, provide electrical insulation, distribute pressure, resist vibration, protect against corrosion, and accommodate thermal expansion and contraction contributes to the reliability, safety, and efficiency of various mechanical and electrical systems. As technology continues to advance, we can expect to see further improvements in the design and performance of insulation self - locking washers, expanding their applications in different industries.
