Insulation is a crucial aspect of building construction and industrial applications, as it helps to reduce energy consumption, improve comfort levels, and protect equipment. Insulation dome washers play a vital role in enhancing the effectiveness and durability of insulation systems. In this comprehensive article, we will explore the features, benefits, applications, and installation methods of insulation dome washers.

I. Introduction

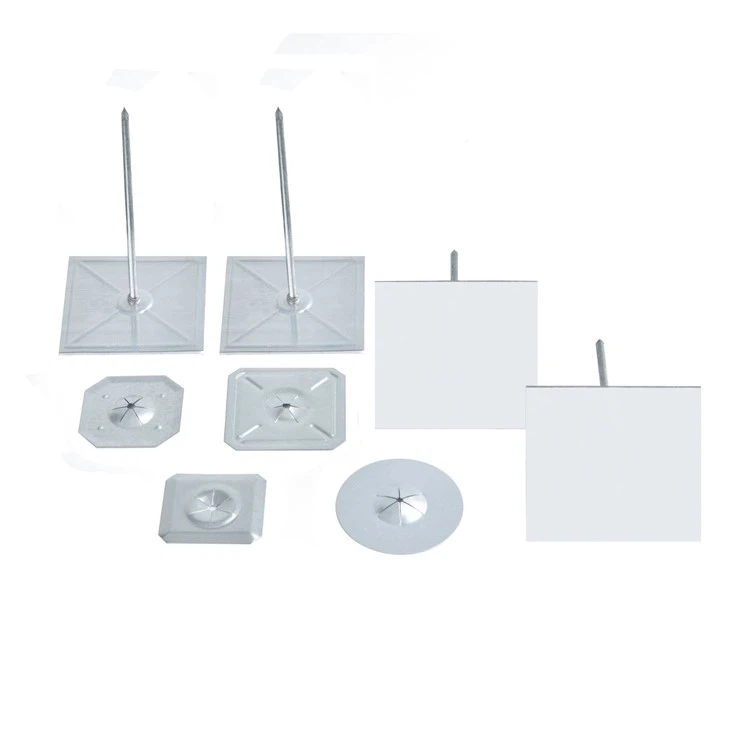

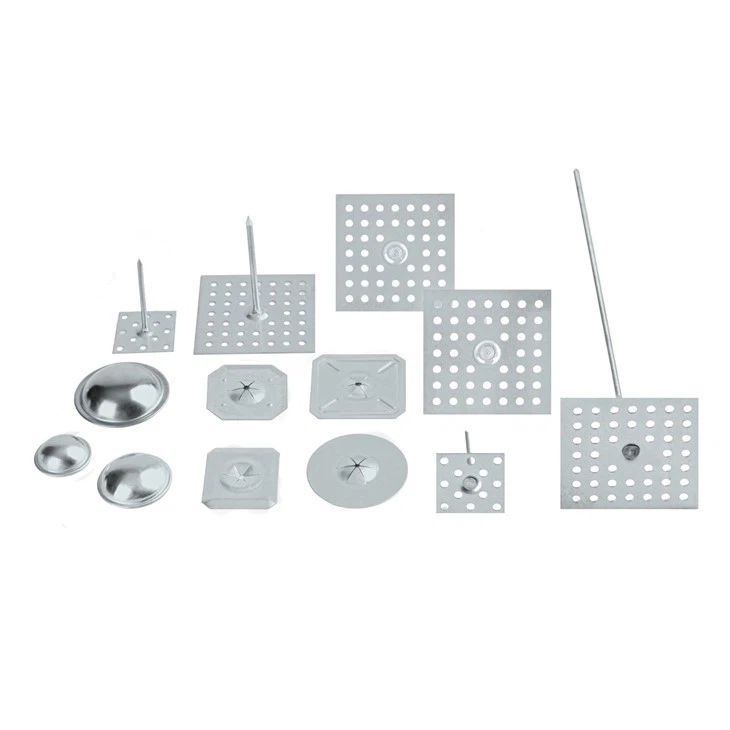

Insulation dome washers are specialized fasteners designed to secure insulation materials in place. They are typically made of durable materials such as stainless steel, galvanized steel, or plastic, and feature a domed shape that provides a secure grip on the insulation. These washers are used in conjunction with insulation pins, screws, or adhesives to ensure a tight and stable installation.

II. Features of Insulation Dome Washers

1. Domed Shape

The domed shape of insulation dome washers is one of their key features. This shape provides a large surface area for contact with the insulation material, distributing the load evenly and preventing damage to the insulation. The dome also helps to prevent the washer from sinking into the insulation, ensuring a secure hold.

2. Material Options

Insulation dome washers are available in a variety of materials to meet different application requirements. Stainless steel washers are highly durable and resistant to corrosion, making them suitable for use in harsh environments. Galvanized steel washers offer good corrosion resistance at a lower cost. Plastic washers are lightweight and non-conductive, making them ideal for applications where electrical isolation is required.

3. Sizes and Thicknesses

Insulation dome washers come in a range of sizes and thicknesses to accommodate different insulation thicknesses and installation methods. Smaller washers are suitable for thin insulation materials, while larger washers can be used with thicker insulation. The thickness of the washer also affects its strength and durability, with thicker washers providing more support.

4. Locking Mechanisms

Some insulation dome washers feature locking mechanisms to prevent them from loosening over time. These mechanisms can include serrated edges, teeth, or spring-loaded designs that grip the insulation and hold the washer in place. Locking washers are particularly useful in applications where vibration or movement is a concern.

III. Benefits of Insulation Dome Washers

1. Enhanced Insulation Performance

By securely fastening insulation materials in place, insulation dome washers help to prevent air gaps and thermal bridging, which can reduce the effectiveness of insulation. The domed shape of the washers also helps to distribute the load evenly, reducing stress on the insulation and preventing damage. This can lead to improved energy efficiency and lower heating and cooling costs.

2. Increased Durability

Insulation dome washers are designed to withstand the rigors of installation and use. They are made of durable materials that can resist corrosion, wear, and impact. The locking mechanisms on some washers also help to prevent loosening over time, ensuring a long-lasting installation. This can reduce the need for maintenance and replacement, saving time and money.

3. Versatility

Insulation dome washers can be used with a variety of insulation materials, including fiberglass, rockwool, cellulose, and foam. They are also compatible with different installation methods, such as pinning, screwing, or adhesive bonding. This makes them a versatile solution for a wide range of insulation applications.

4. Easy Installation

Insulation dome washers are easy to install, requiring only basic tools such as a hammer, screwdriver, or drill. They can be quickly and easily attached to the insulation material, providing a secure hold without the need for complex installation procedures. This can save time and labor costs during installation.

IV. Applications of Insulation Dome Washers

1. Building Construction

In building construction, insulation dome washers are commonly used to secure insulation materials in walls, ceilings, and floors. They can be used with various insulation types, such as batt insulation, rigid foam insulation, and spray foam insulation. The washers help to ensure a tight and stable installation, reducing air leakage and improving energy efficiency.

2. Industrial Applications

Insulation dome washers are also widely used in industrial applications, such as pipe insulation, duct insulation, and equipment insulation. They can be used with high-temperature insulation materials to protect workers and equipment from heat and fire hazards. The washers help to maintain the integrity of the insulation system, ensuring reliable performance and safety.

3. HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, insulation dome washers are used to secure insulation on ducts and pipes. They help to prevent heat loss and condensation, improving the efficiency of the HVAC system. The washers can also be used to insulate air handlers and other HVAC components, reducing noise and vibration.

4. Refrigeration and Cryogenic Applications

Insulation dome washers are essential for refrigeration and cryogenic applications, where insulation is critical for maintaining low temperatures. They can be used with specialized insulation materials, such as vacuum-insulated panels and foam insulation, to provide a secure and reliable installation. The washers help to prevent heat transfer and ensure the proper functioning of refrigeration systems.

V. Installation Methods of Insulation Dome Washers

1. Pinning Method

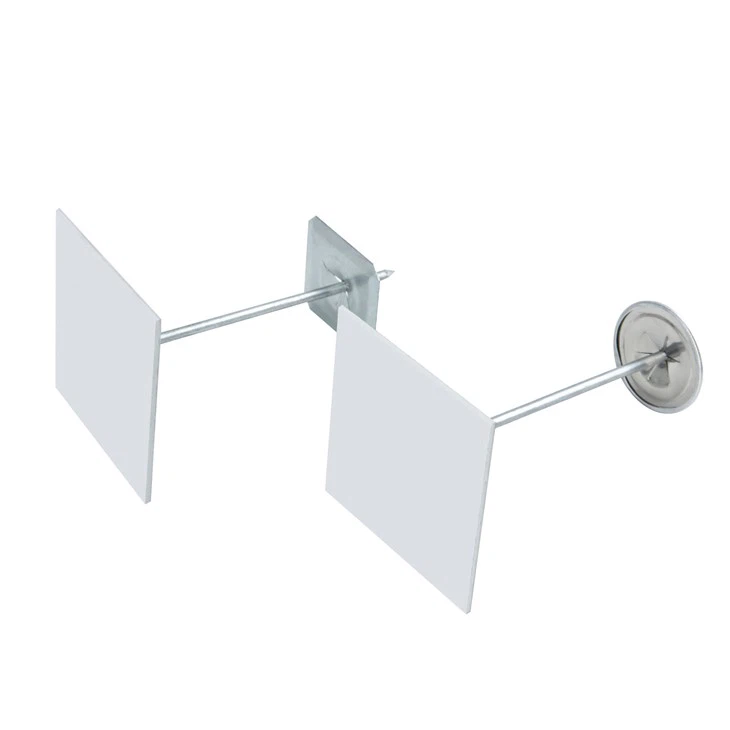

The pinning method is one of the most common installation methods for insulation dome washers. In this method, insulation pins are inserted through the insulation material and into the underlying structure. The insulation dome washer is then placed over the pin and hammered into place, securing the insulation. This method is suitable for applications where a strong and durable hold is required.

2. Screwing Method

The screwing method involves using screws to attach the insulation dome washer to the insulation material and underlying structure. This method is suitable for applications where a more precise installation is required or where the insulation material is too thick for pinning. Screws can be self-tapping or require pre-drilled holes, depending on the material and thickness of the insulation.

3. Adhesive Bonding Method

The adhesive bonding method uses adhesives to attach the insulation dome washer to the insulation material. This method is suitable for applications where a clean and seamless installation is desired or where the underlying structure is not suitable for pinning or screwing. Adhesives can be applied to the washer or the insulation material, depending on the specific product and installation instructions.

VI. Maintenance and Inspection of Insulation Dome Washers

1. Regular Inspection

Insulation dome washers should be inspected regularly to ensure their integrity and effectiveness. Inspect the washers for signs of corrosion, wear, or damage. Check for loose or missing washers and replace them as needed. Also, inspect the insulation material for signs of damage or degradation and repair or replace it if necessary.

2. Cleaning and Maintenance

To maintain the performance of insulation dome washers, it is important to keep them clean and free from debris. Remove any dirt, dust, or moisture that may accumulate on the washers using a soft cloth or brush. If necessary, clean the washers with a mild detergent and water, and dry them thoroughly before reinstalling.

3. Replacement

If insulation dome washers become damaged or worn beyond repair, they should be replaced promptly. Replace the washers with new ones of the same size and material to ensure a proper fit and secure installation. Follow the installation instructions carefully to ensure a correct installation.

Insulation dome washers are an essential component of insulation systems, providing a secure and reliable way to fasten insulation materials in place. With their domed shape, durable materials, and locking mechanisms, these washers enhance insulation performance, increase durability, and offer versatility in installation. Whether used in building construction, industrial applications, HVAC systems, or refrigeration and cryogenic applications, insulation dome washers play a crucial role in ensuring energy efficiency, comfort, and safety. By understanding the features, benefits, applications, and installation methods of insulation dome washers, you can make an informed decision and choose the right product for your insulation needs.
