Insulation pins play a crucial role in the installation and maintenance of insulation materials. Among the various types of insulation pins available in the market, CD Weld insulation pins have gained popularity due to their unique features and benefits. In this in-depth exploration, we will take a closer look at CD Weld insulation pins, covering their characteristics, functions, applications, and more.

I. Introduction to CD Weld Insulation Pins

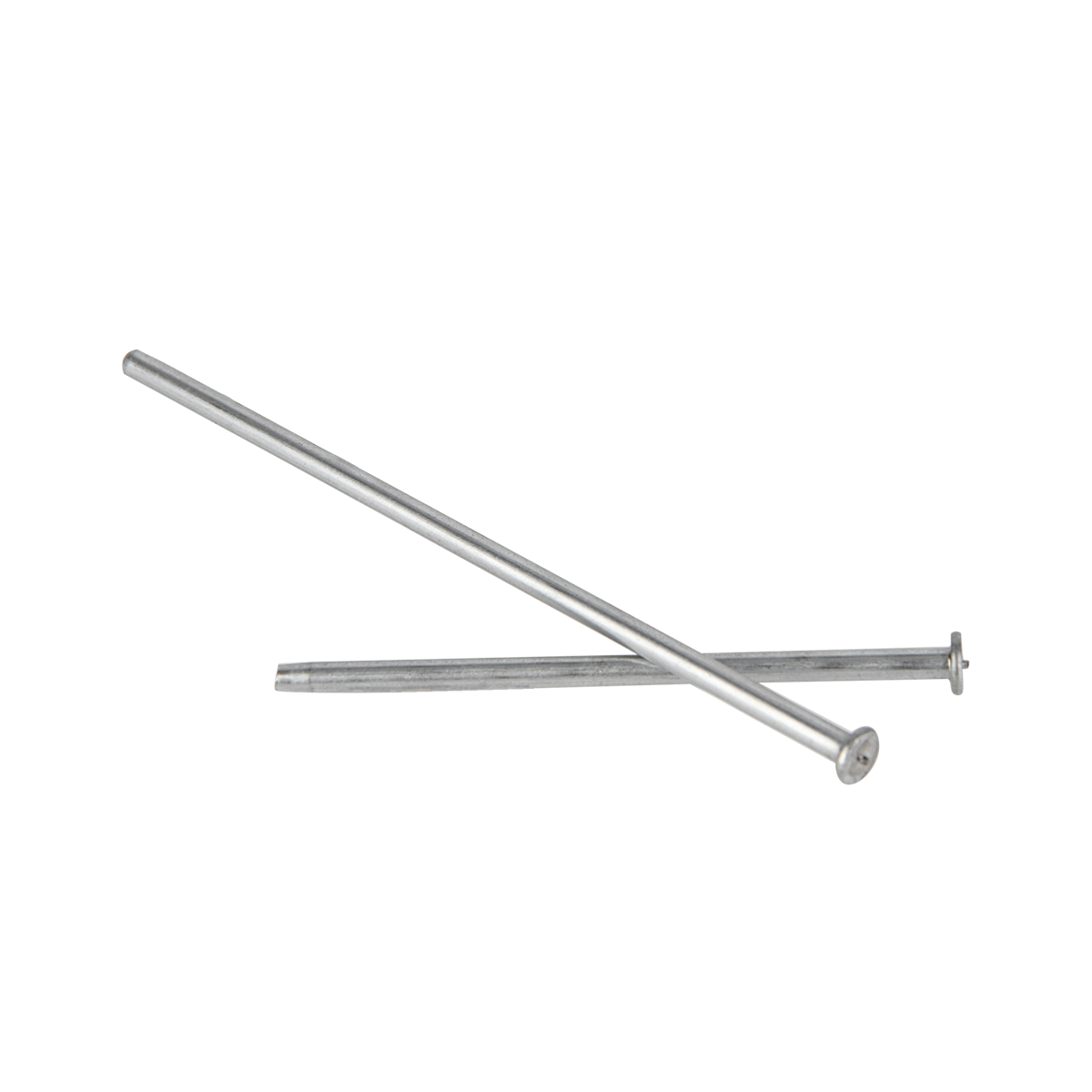

CD Weld insulation pins are a type of fastening device specifically designed for securing insulation materials. These pins are made from high-quality materials and are engineered to provide a reliable and durable solution for insulation installation.

The main purpose of CD Weld insulation pins is to hold insulation materials in place, preventing them from sagging, shifting, or coming loose. By providing a secure attachment point, these pins ensure that the insulation remains effective in providing thermal and acoustic insulation.

II. Characteristics of CD Weld Insulation Pins

A. Material Quality
CD Weld insulation pins are typically made from materials such as stainless steel or galvanized steel. These materials offer excellent durability, corrosion resistance, and strength, making the pins suitable for use in a wide range of environments.

The stainless steel pins are highly resistant to rust and corrosion, even when exposed to moisture or harsh chemicals. This makes them ideal for use in applications where the insulation may be exposed to damp or corrosive conditions.

Galvanized steel pins, on the other hand, are coated with a layer of zinc, which provides additional protection against corrosion. This makes them a cost-effective option for many insulation projects.

B. Design Features

Sharp Point: The sharp point of a CD Weld insulation pin makes it easy to penetrate through insulation materials and into the underlying substrate. This ensures a secure attachment and minimizes the risk of damage to the insulation during installation.

Widened Head: The widened head of the pin provides a large surface area for contact with the insulation. This helps to distribute the load and prevent the insulation from being punctured or damaged.

Barbs or Serrations: Some CD Weld insulation pins may have barbs or serrations on the shaft to increase their holding power. These features help to prevent the pin from being pulled out of the substrate, even under stress or vibration.

Length and Diameter: CD Weld insulation pins come in a variety of lengths and diameters to accommodate different insulation thicknesses and installation requirements. Longer pins may be needed for thicker insulation or when attaching insulation to deeper substrates. The diameter of the pin should be appropriate for the insulation material and the substrate to ensure a secure fit.

C. Insulation Compatibility
CD Weld insulation pins are designed to be compatible with a wide range of insulation materials, including fiberglass, mineral wool, foam board, and more. This makes them a versatile choice for different insulation applications.

The pins are also available in different sizes and configurations to suit specific insulation types and installation methods. For example, there are pins designed for use with blown-in insulation, batt insulation, and rigid foam insulation.

III. Functions of CD Weld Insulation Pins

A. Securing Insulation
The primary function of CD Weld insulation pins is to hold insulation materials in place. By penetrating through the insulation and into the substrate, the pins create a mechanical bond that resists the forces of gravity, wind, and vibration. This helps to prevent the insulation from sagging, shifting, or being dislodged, ensuring its effectiveness in providing thermal and acoustic insulation.

B. Preventing Air Leakage
In addition to securing the insulation, CD Weld insulation pins can also help to prevent air leakage. When the insulation is properly installed and secured with pins, there are fewer gaps and openings through which air can pass. This helps to improve the energy efficiency of a building or structure by reducing heat loss or gain through air infiltration.

C. Enhancing Durability
Insulation pins can also enhance the durability of the insulation system. By providing a secure attachment point, the pins help to distribute the load evenly across the insulation, reducing stress and wear. This can extend the lifespan of the insulation and reduce the need for frequent maintenance or replacement.

D. Facilitating Installation
CD Weld insulation pins can make the installation process easier and more efficient. They provide a quick and convenient way to secure the insulation, eliminating the need for complex fastening systems or adhesives. This can save time and labor costs, especially in large-scale installations.

IV. Applications of CD Weld Insulation Pins

A. Residential Construction
In residential construction, CD Weld insulation pins are commonly used to install insulation in attics, walls, and floors. They help to ensure that the insulation remains in place and provides effective thermal and acoustic insulation, reducing energy consumption and improving indoor comfort.

For attic insulation, the pins can be used to secure blown-in insulation or batt insulation to the ceiling joists. In wall insulation applications, the pins can be used to attach insulation boards to the studs or sheathing. And for floor insulation, the pins can be used to hold insulation mats or boards in place.

B. Commercial Construction
In commercial construction, CD Weld insulation pins are used in a variety of applications, including office buildings, hospitals, schools, and retail stores. They are often used to install insulation in ceilings, walls, and ductwork, helping to improve energy efficiency and reduce noise levels.

For example, in a commercial office building, the pins can be used to secure insulation to the metal decking of the ceiling. In a hospital, the pins can be used to install insulation around ductwork to reduce noise transmission. And in a school, the pins can be used to attach insulation boards to the walls to improve thermal comfort.

C. Industrial Construction
In industrial construction, CD Weld insulation pins are used to insulate pipes, ducts, vessels, and other equipment. They help to maintain process temperatures and reduce heat loss or gain, improving the efficiency of industrial processes and reducing energy consumption.

For example, in a chemical plant, the pins can be used to install insulation around pipes and vessels to prevent heat loss and ensure the safety of workers. In a food processing facility, the pins can be used to insulate ductwork to maintain air quality and prevent condensation.

D. HVAC Systems
CD Weld insulation pins are an essential component in the installation of HVAC (heating, ventilation, and air conditioning) systems. They are used to secure insulation around ducts and pipes, helping to prevent heat loss or gain and improve the efficiency of the HVAC system.

For example, in an HVAC ductwork installation, the pins can be used to attach insulation blankets or boards to the ducts. This helps to reduce noise transmission and improve energy efficiency by minimizing heat loss or gain through the ducts.

E. Other Applications
CD Weld insulation pins can also be used in a variety of other applications, such as marine construction, aerospace engineering, and automotive manufacturing. They are often used to install insulation in areas where space is limited or where traditional fastening methods are not feasible.

For example, in marine construction, the pins can be used to install insulation in ship hulls or engine rooms. In aerospace engineering, the pins can be used to insulate aircraft cabins or engine nacelles. And in automotive manufacturing, the pins can be used to install insulation in vehicle interiors to reduce noise and improve thermal comfort.

V. Choosing the Right CD Weld Insulation Pins

A. Consideration of Insulation Type
When choosing CD Weld insulation pins, it is important to consider the type of insulation being used. Different insulation materials have different densities, thicknesses, and installation requirements, so it is important to select pins that are compatible with the specific insulation being installed.

For example, fiberglass insulation may require pins with a different diameter or length than mineral wool insulation. Blown-in insulation may require pins with a special design to ensure proper penetration and holding power.

B. Load Capacity
The load capacity of the insulation pins is another important consideration. Depending on the application, the insulation may be subjected to different loads, such as gravity, wind pressure, or vibration. It is important to select pins that have a sufficient load capacity to handle the expected loads and ensure a secure installation.

For example, in areas where the insulation may be subjected to high winds or heavy loads, it may be necessary to use pins with a larger diameter or stronger material to ensure a secure attachment.

C. Environmental Conditions
The environmental conditions in which the insulation pins will be installed should also be considered. If the pins will be exposed to moisture, chemicals, or extreme temperatures, it is important to select pins that are resistant to these conditions.

For example, in a marine environment, stainless steel pins may be a better choice than galvanized steel pins due to their superior corrosion resistance. In an industrial setting where the insulation may be exposed to chemicals, pins made from a chemical-resistant material may be required.

D. Installation Method
The installation method for the insulation pins will also affect the selection process. Different installation methods may require different types of pins or installation tools.

For example, if the insulation will be installed using a pneumatic gun, it is important to select pins that are compatible with the gun and have the appropriate length and diameter for the application. If the insulation will be installed manually, pins with a sharp point and easy-to-use head may be preferred.

E. Cost
Finally, cost is always a consideration when choosing insulation pins. While it is important to select high-quality pins that will provide a reliable installation, it is also important to consider the cost and ensure that it fits within the budget for the project.

CD Weld insulation pins are available in a range of prices, depending on the material, size, and features. It is possible to find cost-effective options that still meet the requirements of the project without sacrificing quality.

VI. Installation Process of CD Weld Insulation Pins

A. Preparation
Before installing CD Weld insulation pins, it is important to prepare the installation area. This may involve cleaning the substrate to remove any dirt, debris, or loose materials. The insulation should also be cut to the appropriate size and shape to fit the area being insulated.

If the substrate is metal, it may be necessary to drill pilot holes to ensure proper penetration of the pins. For wood substrates, the pins can usually be driven directly into the surface without the need for pilot holes.

B. Insertion of Pins
To install the pins, start by positioning the insulation material on the substrate. Then, using a hammer or other suitable tool, drive the pin through the insulation and into the substrate. Make sure to insert the pin at a perpendicular angle to ensure a secure attachment.

The depth of insertion should be sufficient to provide a strong hold, but not so deep that it damages the substrate or compromises the integrity of the insulation. Refer to the manufacturer's instructions for specific recommendations on insertion depth.

C. Spacing and Layout
The spacing and layout of the insulation pins will depend on the type and thickness of the insulation, as well as the installation requirements. Generally, pins should be spaced evenly across the surface of the insulation to ensure a uniform distribution of load.

Refer to the manufacturer's instructions or consult a professional for specific recommendations on spacing and layout. In some cases, it may be necessary to use additional pins or install them in a specific pattern to ensure a secure installation.

D. Finishing Touches
Once the pins are installed, check to make sure that the insulation is firmly in place and there are no gaps or loose areas. If necessary, add additional pins or adjust the spacing to ensure a proper installation.

Finally, finish the installation by covering the pins with a suitable finishing material, such as tape or caulking, to protect them from moisture and other environmental factors. This can also help to improve the aesthetic appearance of the installation.

VII. Maintenance and Care of CD Weld Insulation Pins

A. Inspection
Regular inspection of CD Weld insulation pins is important to ensure their continued effectiveness. Check for any signs of damage, such as bent or broken pins, or loose insulation. If any issues are found, they should be addressed promptly to prevent further damage or loss of insulation performance.

Inspect the pins at least once a year, or more frequently if the installation is subjected to harsh environmental conditions or heavy loads. During the inspection, also check for any signs of corrosion or wear on the pins and take appropriate action if necessary.

B. Cleaning
If the insulation pins become dirty or contaminated, they can be cleaned using a mild detergent and water. Avoid using harsh chemicals or abrasives, as these can damage the pins or the insulation.

After cleaning, make sure to dry the pins thoroughly before reinstalling the insulation. This can help to prevent corrosion and ensure the pins remain in good condition.

C. Replacement
If CD Weld insulation pins become damaged or worn out, they should be replaced promptly. This will ensure that the insulation remains securely in place and continues to provide the desired level of thermal and acoustic insulation.

When replacing pins, make sure to use the same type and size as the original pins to ensure a proper fit. Follow the installation instructions carefully to ensure a secure installation.

VIII. Conclusion

CD Weld insulation pins are a reliable and effective solution for securing insulation materials in a wide range of applications. With their high-quality materials, unique design features, and versatile applications, these pins can help to improve the energy efficiency, durability, and comfort of buildings and structures.

When choosing CD Weld insulation pins, it is important to consider the type of insulation, load capacity, environmental conditions, installation method, and cost. By carefully selecting the right pins and following the proper installation and maintenance procedures, you can ensure a successful insulation installation that provides long-term performance and value.

Whether you are working on a residential, commercial, or industrial project, CD Weld insulation pins can be a valuable addition to your insulation toolkit. With their durability, strength, and ease of use, these pins can help you achieve a secure and effective insulation installation that meets your specific needs and requirements.
